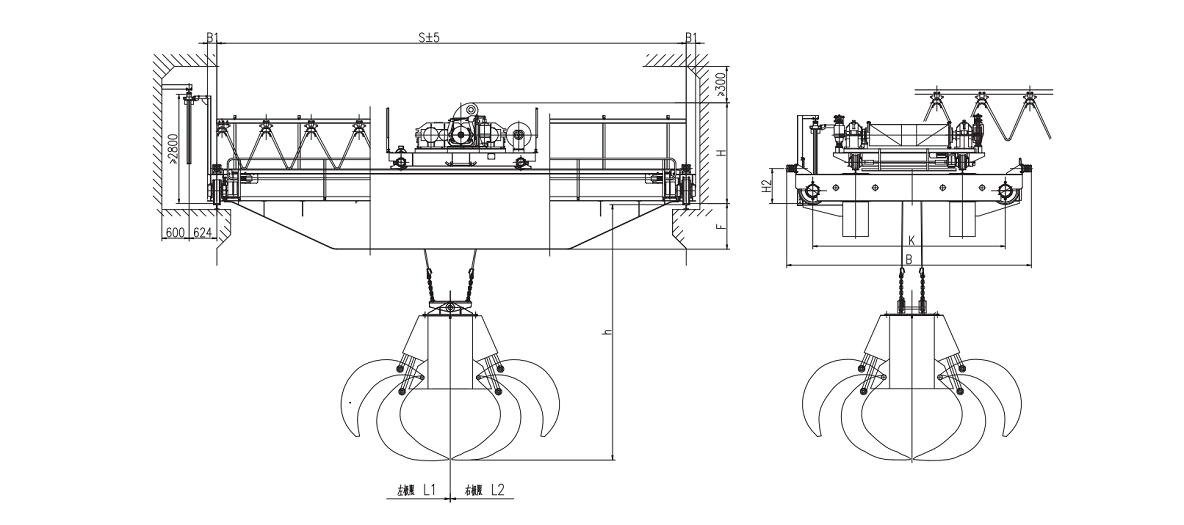

The QZ Grab Bucket Overhead Crane is a high-efficiency lifting solution specially designed for handling bulk materials such as coal, ore, grain, and sand. Equipped with an automatic grab system, it enables fast, continuous, and precise loading and unloading operations in heavy-duty industrial environments.
This crane features a robust double girder bridge structure combined with an electric trolley and intelligent control system, ensuring excellent stability and load-bearing capacity. The bridge travels along runway rails, while the trolley moves horizontally on the girders, allowing full coverage and accurate positioning within the working area.
The grab bucket is the core working device, designed to efficiently grab, lift, and release bulk materials. It supports various grab types depending on material characteristics, ensuring optimal performance in different handling scenarios.
Equipped with advanced electrical control systems, the crane provides precise motion control, smooth operation, and enhanced safety. Automation features such as automatic positioning and grab opening/closing significantly improve operational efficiency.
5 ton – 50 ton
Mechanical / Hydraulic Grab Bucket
A6 / A7 Heavy Duty
Cabin / Remote Control
Key Features
High-capacity grab bucket for efficient bulk material handling
Automated grab operation for improved efficiency and reduced labor
Stable double girder structure for heavy-duty working conditions
Flexible configuration for different material types and densities
Reliable electrical control system with precise positioning
Suitable for continuous and high-frequency operation
Application Areas
Port terminals and bulk cargo handling yards
Mining and mineral processing plants
Power plants and coal handling systems
Cement factories and raw material storage areas
Grain storage facilities and agricultural warehouses
Important Notes
Select appropriate grab type based on material characteristics and working conditions
Regular inspection of grab mechanism and lifting system is required
Automation systems can be customized for higher efficiency and reduced manual operation
Brand Reputation
Weihua Cranes ranks among the top sellers in China's crane industry, boasting high brand awareness and market share. Its products are widely used in numerous national key projects.
Full Service
Weihua provides a one-stop service, encompassing consultation and planning, solution design, installation, and localized technical support worldwide.
Excellent Product Quality
Weihua Crane employs automated production lines and precision machining equipment. Key components are sourced from well-known domestic and international brands.
High Safety
Weihua Lifting strictly adheres to international standards such as GB and FEM. Key structures adopt high safety factors to ensure precise operation.
Customized Grab Bucket Overhead Crane (QZ Type) Solutions
Weihua Crane provides fully customized Grab Bucket Overhead Crane (QZ Type) solutions designed for efficient handling of bulk materials such as coal, ore, sand, and grain, ensuring high productivity and reliable performance in heavy-duty operations.
Key parameters such as lifting capacity, span, lifting height, grab bucket type, and duty class can be flexibly customized to meet different working conditions, making it ideal for bulk material handling in ports, power plants, and industrial yards.
Optional Configurations
Mechanical or electro-hydraulic grab bucket options
Automatic control system for continuous operation
Frequency conversion drive for smooth and stable movement
Anti-sway technology for precise material positioning
Dust-proof and wear-resistant design for harsh environments
Our engineering team ensures high efficiency, continuous operation capability, and long service life, providing reliable bulk material handling solutions for ports, power plants, mines, and logistics facilities.
| Lifting capacity(t) | 5 | 10 | 16 | 20 | |
| Span(m) | 10.5-31.5 | 16.5-31.5 | |||
| Lifting height(m) | 20 | 18 | 28 | 26 | |
| Working class | A6 | ||||
| Speed (m/min) |
Hoist lifting | 39.2 | 40.7 | 41.8 | 48.6 |
| Trolley traveling | 44.6 | 45.9 | 38.0 | 37.8 | |
| Crane traveling | 93.6/113.6 | 112.5/101 | 88/87.3 | 87.3 | |
| Power supply | 380V, 50HZ, 3 phase or others | ||||
-
